50G SFP56 ER Transceiver (FTCS-1350G-40Dxx)
Description
Description
The F-tone Networks FTCS-1350G-40Dxx is a single-Channel, Pluggable, Fiber-Optic SFP56 for 26.5625GBd PAM4 Ethernet Applications.. It is a high performance module for short-range data communication and interconnect applications which operate at 53.125 Gbps up to 40km. This module is designed to operate over single mode fiber systems using a nominal wavelength of 1311nm. The electrical interface uses a 20 contact edge type connector. The optical interface uses duplex LC receptacle. This module incorporates F-tone Networks proven circuit and technology to provide reliable long life, high performance, and consistent service.
Features
● Hot-pluggable SFP28 form factor
● Maximum link length of 40km
● Full-duplex transceiver module
● Up to 53.125Gbps (26.5625GBd PAM4)
● 53.125Gbps PAM4 based on a cooled EML TOSA transmitter
● 53.125Gbps PAM4 APD Receiver
● Duplex LC receptacle
● Single 3.3V power supply
● Power dissipation < 3W
● RoHS compliant (lead free)
● Operating case temperature range:
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● IEEE 802.3cd 50GBASE-ER
● Other Optical Link

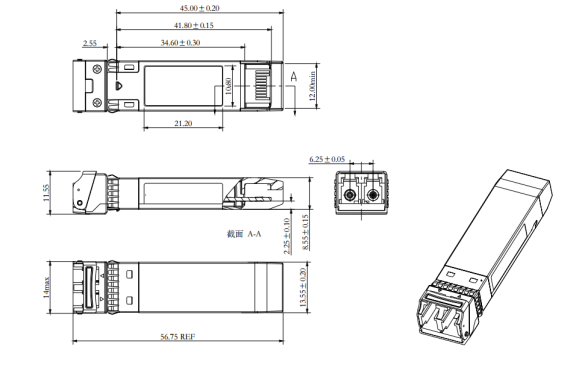

Mechanical Dimensions
Ordering information
|
Part Number |
Product Description |
|
FTCS-1350G-40D |
53Gbps, 1311nm, SMF, 40km, 0ºC ~ +70ºC |
|
FTCS-1350G-40DI |
53Gbps, 1311nm, SMF, 40km, -40ºC ~ +85ºC |
本产品为25G~400G高速光 ？橄盗 ，如有需要 ，请联系尊龙凯时。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
